Neoprene Rubber Standoff, Male - Male, 1/4-20 Thread, 1" High, 1" Wide 9213K17

Hover over image to zoom

  • Vibration Damping Sandwich Mount, Male / Male, 1/4"-20 Thread, 1" High, 1" Wide,
Neoprene Rubber :
Has good resistance to weather and acids and moderate resistance to oils.
  • 9213K17
  • 9213K17
  • Andrews Motorsports Building 3
  • Fabrication Shop
  • Cylinder Head Machining Area
  • Engine Assembly Area
McMaster Carr
RRP: $6.49
$5.47 (You save $1.02)
SKU:
9213K17
Condition:
New
Availability:
Usually Ships In One Business Day

 Product Description

                                               ***** PLEASE READ TERMS AND CONDITIONS BELOW CAREFULLY *****

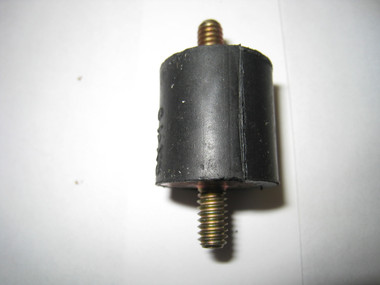

This listing is for one NEW Vibration Damping Sandwich Mount, Male/Male, 1/4"-20 x 1/2 " stud length thread, 1" High, 1" Wide, material is Neoprene Rubber as shown in pictures 1 thru 3. We use these in the shop for many different mounting applications where we are concerned about vibrations. A couple of examples is we use them on a Legends Race Car to protect the oil cooler from cracking from vibration. When building a custom motorcycle we use these for mounting electrical boxes such as a coil box.

NOTE: Neoprene rubber has good resistance to weather and acids and moderate resistance to oils.

PLEASE VIEW MORE ITEMS AND SERVICES FOR YOUR LEGEND RACE CAR OR CUSTOM MOTORCYCLE AT THE ANDREWS WEB STORE


International Buyers – Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.


**Terms and Conditions**
*Payment must be received within two days of auction end.
*Payment method is PayPal ONLY!
*Item will be shipped within 2 days of receiving payment. International 4 days.
*LIMITED INTERNATIONAL SHIPPING! Please contact before purchase.
*No warranty expressed or implied for this auction
*There will be a 7.00% sales tax for residents of North Carolina.
*If you are a North Carolina resident or shipping to a NC address after you click the Buy It Now button please wait until I send you an updated invoice with sales tax added.
*Buyer is responsible for all shipping charges.
*RETURNS, if we described the part incorrectly. It is the buyer's responsibility to make sure the part he is ordering is what he needs.
*If for some reason you are dissatisfied with your transaction please contact us and we will do our best to correct the problem.
** You must have a feedback rating of at least 5 before bidding. If you do not meet this requirement, please email before you bid.
** Otherwise your bid may be deleted!**


SPECIFICATIONS:
Mount Type Threaded Stud
Thread Size 1/4"-20
Thread Type UNC
Capacity per Mount 45 lbs.
Deflection @ Capacity 0.1"
Shear Capacity per Mount 8 lbs.
Deflection @ Shear Capacity 0.1"
Diameter 1"
Height 1"
Thread Length 1/2"
Hardness Durometer 50A
Hardness Rating Medium
System of Measurement Inch
Shape Round
Material Black Neoprene Rubber
Stud Material Zinc-Plated Steel
Temperature Range 10° to 180° F
RoHS Compliant

Use these rubber sandwich mounts to minimize vibration between surfaces inside machinery and equipment, such as in circuit boards, small fans,compressors, and pumps. They're for use in compression and shear load applications.

Neoprene rubber has good resistance to weather and acids and moderate resistance to oils.










































































































































































































































































































 Warranty Information

No Warranty Is Expressed Or Implied
